2000N Thrust Electric Linear Actuator With Built-in Potentiometer and Position Feedback Stroke 2 Inches 50MM (Model 0041662)

Regular price $100.00

Shipping calculated at checkout.


Video:

The Electric Linear Actuator Pull Test Video

The Electric Linear Actuator Thrust Test Video

How to use the Remote Control Set to Control the Electric Linear Actuators (Model 0020317)

Wireless Controller Remotely Controls Linear Actuator Speed (Model 0020151)

How to use the Speed Governor to Control the Electric Linear Actuator (model 0044009)

Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

Introduction:
This linear actuator has a built-in potentiometer with three output wires connected. When the linear actuator moves, the resistance value between the output lines changes accordingly. In this way, we can obtain the corresponding movement position of the linear actuator by measuring the resistance value.

Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments
Metal gearbox, high strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 2000N / 200 Kgs / 450 lbs
Multiple speed options, from 5 mm/second to 160 mm/second
Multiple stroke options, from 10 mm to 1000 mm
We can customize any stroke length from 10mm to 1000mm, such as 225mm, 660mm, 950mm and so on.
With a built-in potentiometer
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Built-in Hall sensor is optional, so you can use the synchronous controller to operate 2 or 4 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free

Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power supply available, we recommend you choose the linear actuator with 24V working voltage.

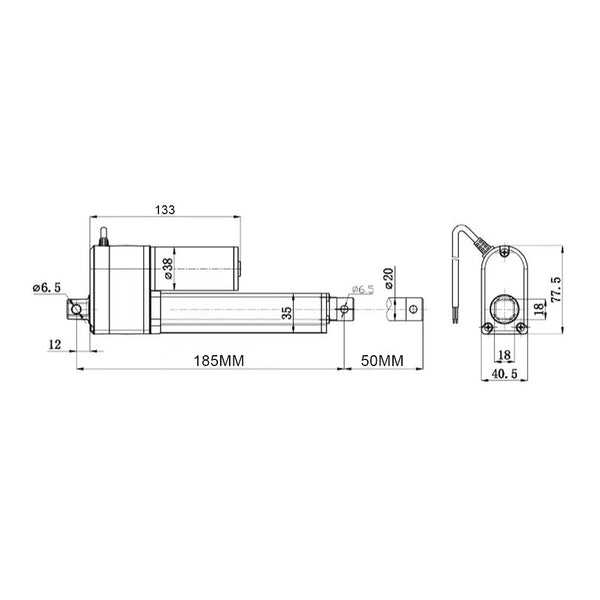

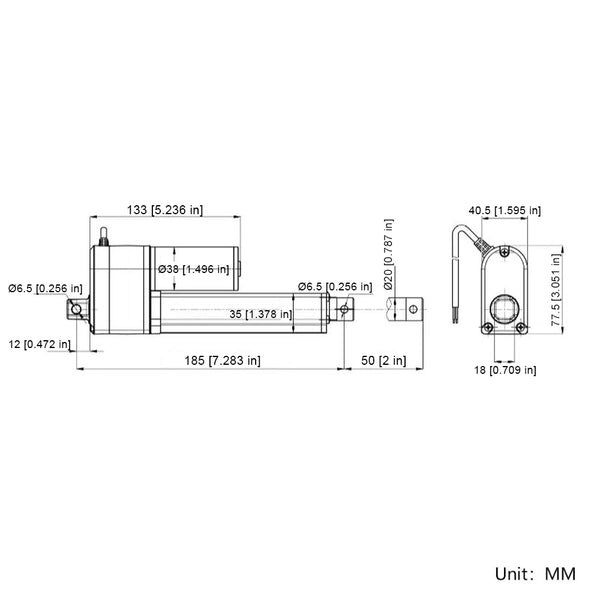

Stroke range: 2 inches or 50 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s, 100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max Load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use a 12V/6A or 24V/3A power supply to power a linear actuator or use a 12V/10A or 24V/5A power supply to power two linear actuators, or use a 12V/20A or 24V/10A power supply to power four linear actuators.
Shaft diameter: 20mm
Mounting holes diameter: 6mm

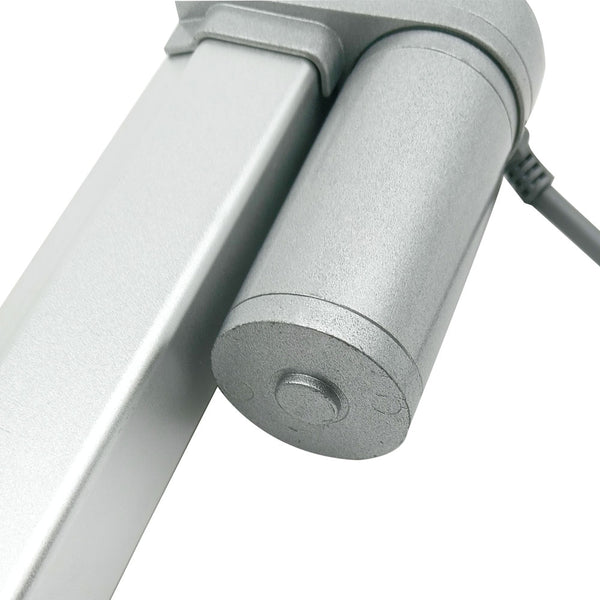

Housing material: Aluminum Alloy

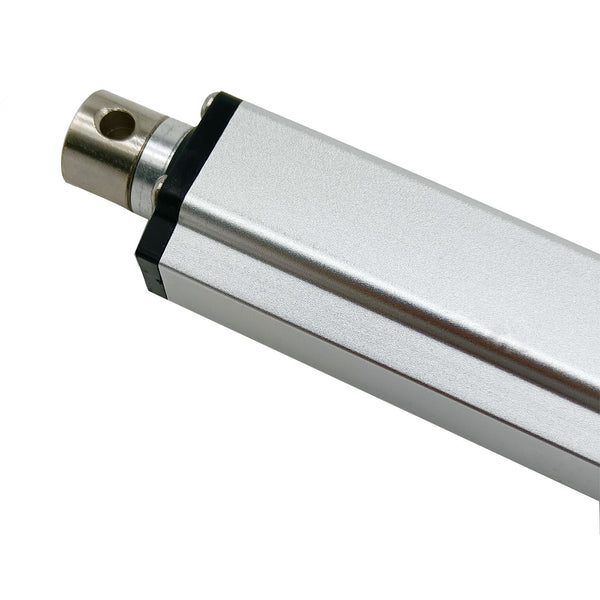

Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
Built-in potentiometer: 10K ohms (You can specify other resistance values)
Duty Cycle: 20%, max 5mins continuous use
Cable: Five-core Cable (Two power wires and three potentiometer output wires)
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65

Fixed Bracket:
1. This linear actuator does not contain fixed mounting brackets, please click here to purchase.
2. Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.
3. Compatible Mounting Brackets: Bracket A and Bracket C .

Operation:
The electric linear actuator has a five-core cable.

1. The red and black lines are two power lines of the electric linear actuator.
Connect the DC power supply to two power wires of the electric linear actuator. When linear actuator is connected to DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the polarity of DC power supply.

2. The white, blue and yellow wires are three output wires of the potentiometer.
The blue and yellow wires are connected to two terminals of the potentiometer, it is a fixed resistance value.

When the linear actuator moves, the resistance value between white wire and yellow wire or white wire and blue wire changes accordingly. In this way, we can obtain the corresponding movement position of the linear actuator by measuring the resistance value. When the linear actuator is extended outwards, the resistance value between white and blue wires will decrease accordingly, and the resistance value between white and yellow wires will increase accordingly. When the linear actuator is retracted inward, the resistance value between white and blue wires will increase accordingly, and the resistance value between white and yellow wires will decrease accordingly.

For example, a linear actuator with a stroke of 200mm and a built-in potentiometer of 10K ohms.
When the linear actuator is fully retracted, the resistance value between white wire and yellow wire is 0.8K ohms, and the resistance value between white wire and blue wire is 9.2K ohms.
When the linear actuator is extended to the 100mm position, the resistance value between white wire and yellow wire is 4.5K ohms, and the resistance value between white wire and blue wire is 5.5K ohms.
When the linear actuator is fully extended, the resistance value between white wire and yellow wire is 9.1K ohms, and the resistance value between white wire and blue wire is 0.8K ohms.

Note:
1. If you want to control 2 or 4 linear actuators fully synchronously, you need to add built-in hall effect sensor to each linear actuator, and buy a synchronization controller, please click here to purchase.
2. If you need a power supply to power linear actuator, please click here to purchase.
3. If you want to use external limit switches to stop linear actuator at any position, please click here to purchase. How to connect two external limit switches to electric linear actuator, please click here to watch the connection video.
4. If you want to use a remote control switch to operate linear actuator wirelessly, please click here to purchase.

Different no-load speeds and corresponding maximum thrust:

No-load Speed Maximum Thrust
5mm/s 2000N / 200 kg / 450 lbs
10mm/s 1000N / 100 kg / 200 lbs
15mm/s 800N / 80 kg / 180 lbs
20mm/s 700N / 70 kg / 160 lbs
30mm/s 500N / 50 kg / 110 lbs
50mm/s 300N / 30 kg / 60 lbs
100mm/s 150N / 15 kg / 30 lbs
160mm/s 100N / 10 kg / 20 lbs

Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking force is much smaller than the thrust. At other speeds the self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.

Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.

We can provide 3D CAD model files in STEP format for linear actuators. Please contact us by e-mail if you need them.
